Description

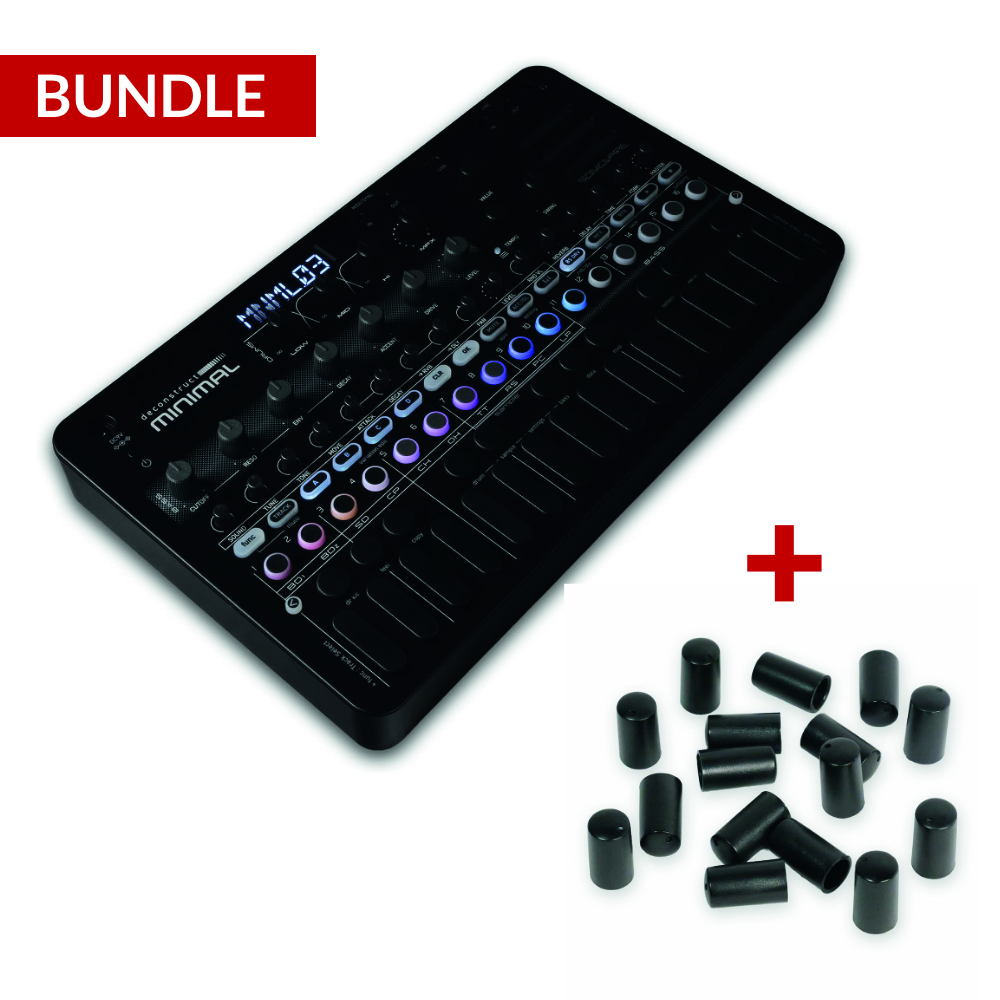

BUNDLE: Sonicware deconstruct MINIMAL + Micro Knob Caps (16 pieces)

Compact groovebox designed for hypnotic minimal, techno, and electronic music production. Deconstruct MINIMAL combines a drum machine, sampler, and bass synthesizer in one powerful and portable unit.

Inspired by the groove of classic drum machines, it delivers dynamic rhythms with subtle timing and pitch drift. Its 10-track engine, flexible sequencing, and wide range of effects provide deep creative control for studio and live use.

The built-in sampler adds textures and loops, while the analog-modeling bass synth delivers punchy basslines and driving leads. Performance-focused effects allow real-time manipulation for expressive live sets.

HIGHLIGHTS

  • Groovebox with drum machine, sampler & bass synth
  • 10 tracks + loop track for complex patterns
  • Authentic vintage-style groove with natural drift
  • Integrated 4-track sampler with time-stretch & repitch
  • Analog-modeling bass synth for acid & techno sounds
  • Advanced sequencer with parameter locks & pattern chaining
  • Performance effects: filter, distortion, phaser, delay & more
  • Compact, lightweight & performance-ready



SPECIFICATIONS

Drum Machine

  • 9 tracks
  • 16 drum kits
  • 130 sounds across 10 banks
  • Sample-based engine with editable parameters per bank
  • Dedicated synthesis engines for BD1 & SD
  • Hi-hats emulate analog-style variations
  • Per-track groove controls: accent, random velocity, swing, sub-steps
  • Real-time recording & step input
  • Built-in isolator for tonal shaping and boost/cut

Sampler

  • Sample import/export via LINE IN or USB
  • 4 sampler tracks (Tracks 7–10)

Tracks 7–9:

  • 32 slots (2 sec mono) / 16 slots (4 sec mono)
  • 48kHz / 16-bit PCM
  • Repitch-to-tempo function

Track 10 (Loop Track):

  • 12 slots (8 sec stereo)
  • 48kHz / 16-bit PCM
  • Loop / one-shot playback
  • Time-stretch function
  • Adjustable crossfade (1–4 sec) & retrigger

Bass Synthesizer

  • 1 track analog-modeling synth
  • 4 waveforms + alternate synth mode
  • Acid-style ladder filter

Oscillator:

  • Saw, Square, Triangle, Rectangle
  • Sub oscillator (sine) with selectable range
  • S01 mode (SAW/SQUARE blend + sub oscillator)

Filter & Envelope:

  • 4-pole low-pass filter with resonance
  • Envelope amount & decay control
  • Adjustable decay curve

Performance:

  • Monophonic
  • Glide (time & curve adjustable)
  • Filter-linked accent
  • Adjustable gate time
  • Built-in overdrive

Sequencer

  • 11 tracks
  • 128 patterns
  • Up to 64 steps (16 steps × 4 variations)
  • Real-time & step recording
  • Parameter locks (per step)
  • Pattern chaining & variation playback
  • Phrase rotation
  • Mute & solo functions
  • BPM per pattern or global
  • Transpose function

Effects

  • Master FX:
    • Sweep Filter
    • Phaser
    • Distortion
    • Snip Loop
    • Ducking Compressor
  • Send FX:
    • Reverb (Room, Hall, Plate)
    • Delay (tape-style, BPM sync, ping-pong)

MIDI

  • Note, CC & Clock input/output

Hardware

  • 27 pads/keys
  • 12 knobs, 2 encoders, 16 micro knobs
  • Control modes: SCALE, LATCH, JUMP

Connectivity

Inputs:

  • Line In (stereo mini jack)
  • USB audio

Outputs:

  • Line Out (stereo mini jack)
  • Headphones
  • USB audio
  • Built-in speaker

Interfaces:

  • USB-C (data, MIDI, audio)
  • MIDI/SYNC In/Out (3.5mm)

Dimensions & Weight

  • Size: 297 × 176 × 48 mm
  • Weight: 840 g

Power

  • 9V DC adapter (not included)
  • 6× AA batteries (not included)
